„POWER“ P32

Straightening and Bending on the P32
magnify

Straightening and Bending on the P32

STRAIGHTENING AND BENDING MACHINE

The P32 series was the first bending machine line produced by Kunkel. This model developed by Grandfather Kunkel started the era of straightening and bending machine construction.

Special features of this line include the fixed straightening beam in the frame construction, a most massive guided hydraulic cylinder, as well as the hydraulic lifting
and lowering function of roll conveyors. Additionally, a spring-mounted limit switch allows exact regulation of the straightening stroke, a truly ideal feature for straightening works. Easy-to-handle control elements such as the manual control gauge to regulate the oil flow to the cylinder and the adjustable cam control for forward and return stroke control are integral parts in the MiniBend 10 and ECO series until this day.

Technical Data

Compressive force 320 kN (32t)
Adjustable 0–320 kN
Cylinder stroke 200 mm
Clearance 300 mm
Motor power 5.5 kW
Operational pressure 280 bar
Bending capacity 140 x 20 mm at V 125,  200 x 18 (19)mm at V 200
Straightening capacity 200 with a distance of 1,000 mm to the straightening block
Tool height 240 mm
Dimensions 1.160mm x 1.200mm x 1.400mm (LxWxH)
Weight 1.400 kg

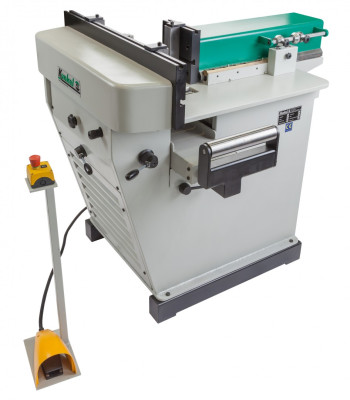

Straightening and Bending Machine P32
magnify

Straightening and Bending Machine P32

Machine set-up for straightening with straightening blocks and spring-mounted limit switch

Straightening on the P32
magnify

Straightening on the P32

Pieces are straightened in the straightening triangle between the three straightening blocks. Special feature: limit switch between two straightening blocks

Straightening and Bending on the P32
magnify

Straightening and Bending on the P32

Straightening and Bending on the P32
magnify

Straightening and Bending on the P32

Downloads

application/pdf; charset=binary

„POWER“ P32

STRAIGHTENING AND BENDING MACHINE

Kunkel_Richtmaschine_Biegemaschine_Classic_eng
3,1 MB
