EDZ 225

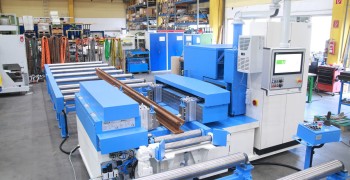

Horizontal hydraulic Bending and straightening press 225 t (2,250 kN) for rails and sections

magnify

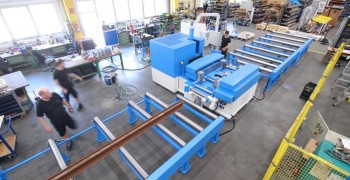

Horizontal hydraulic Bending and straightening press 225 t (2,250 kN) for rails and sections

Rail bending machines

Horizontal hydraulic Bending and straightening press 225 t (2250 kN) for rails and sections

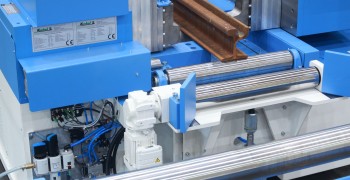

Straightening blocks motorized

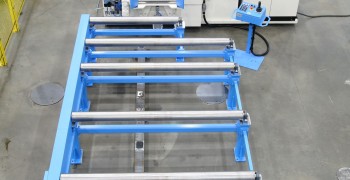

Mobile operation panel
Camber measuring by laser, and PLC-controlled bending operation according bending plan

Technicals Data

Working pressure	2250 kN/225 t
Variable speed	200-2250 kN
Sroke of the cylinder	430 mm
Motor	22 kW
Pump capacity	280 bar
Speed	2,0/0,6 m/min
Normal voltage	400V +/- 5% / 50 Hz +/- 1%
Tool height Standard	240 mm
Feed rollers above floor	800 mm or higher as desired
Culvert	450 mm
Weight	17.000 kg
Color	RAL as desired

Technical changes possible

matching products

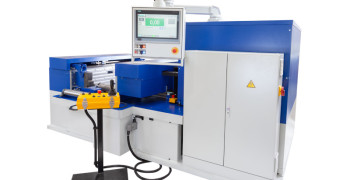

Bending

Cambering of steel beams and profiles

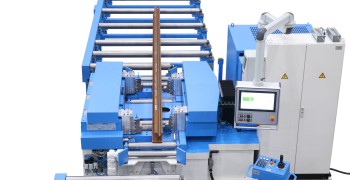

Profile straightening

Straightening

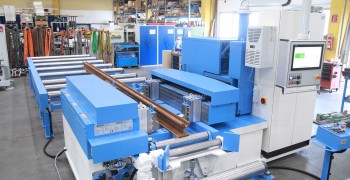

Horizontal hydraulic Bending and straightening press 225 t (2,250 kN) for rails and sections

magnify

Horizontal hydraulic Bending and straightening press 225 t (2,250 kN) for rails and sections

Full technical casing on request

magnify

Full technical casing on request

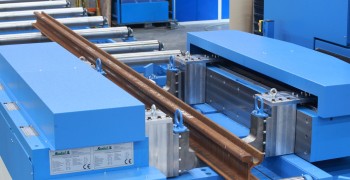

Vertical cylinder

magnify

Vertical cylinder

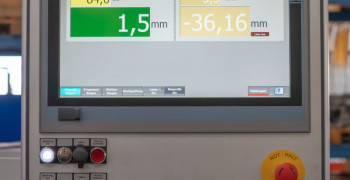

Camber measuring with laser

magnify

Camber measuring with laser

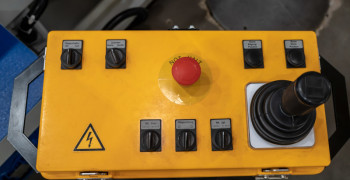

Mobile operation panel

magnify

Mobile operation panel

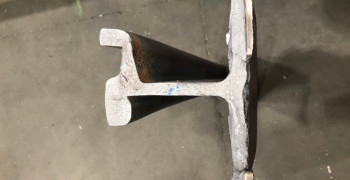

$Result of a fracture test for welding analysis$

magnify

Result of a fracture test for welding analysis

Downloads

application/pdf; charset=binary

EDZ 225

RAIL BENDING MACHINE

Kunkel_Schienenbiegeanlage_EDZ225_eng

5,5 MB

open

download
